We are a professional mobile power supply system manufacturer with technology from Germany. We provide better mobile power supply system solutions for your engineering projects, the mobile power supply system including cable reel system (motor driven cable reel and spring driven cable reel), drag chain systems, traction systems, sliding wire systems, wireless power supply systems, equipment control systems, cables. Our products mainly serve the lifting, logistics, ports, aviation, metallurgy, ocean, petroleum, electricity, energy, mining, chemical industry, construction machinery and intelligent manufacturing industries.

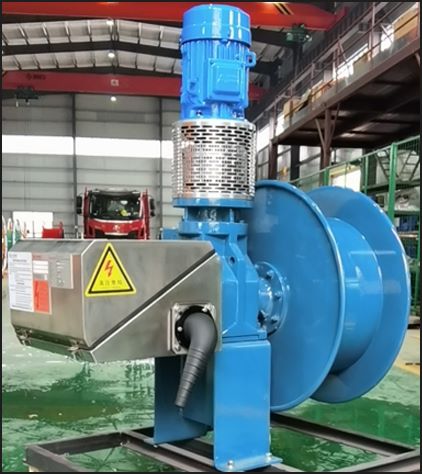

Hysteresis coupled cable reel
Product performance and parameters:
Application scenarios	Bulk material terminals, ports, power plants, steel mills plants, railway freight yards
Ambient temperature	-40/+60℃
Motor/power	Brake motor/1.5KW
Cable specifications	4X10+4X4
Reeling form	Horizontal/vertical coiling
Reeling length	100-300 meters, Customized Acceptable
Operating speed	50m/min
Protection level	IP55
Product features and advantages:
Hysteresis coupling cable reel can achieve relatively large torque output and can achieve constant tension on the cable. Since this cable reel uses hysteresis coupling to transmit torque, the transmission characteristics are relatively soft.
Equipped with integral slip rings and precision carbon brushes, it has a compact space design, high reliability and wide application

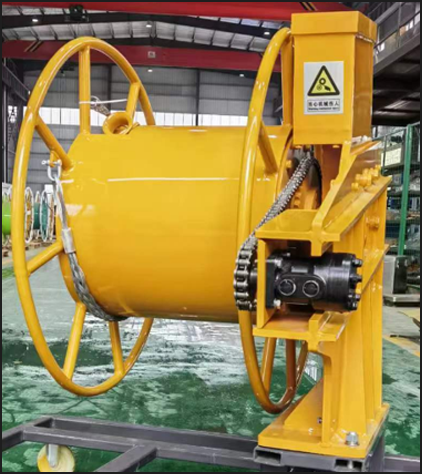

Explosion-proof cable reel
Product performance and parameters:
Application scenarios	Mining
Ambient temperature	-40/+60℃
Cable specifications	3X16+1X10
Reeling form	Horizontal coiling
Reeling length	100 meters, Customized Acceptable
Operating speed	50m/min （Adjustable)
Protection level	IP56
Product features and advantages:
Each joint surface of the explosion-proof cable reel has been explosion-proofed, fully meeting the configuration of mining machinery and equipment and the explosion-proof requirements of the working environment. This explosion-proof cable reel adopts a hydraulic motor and chain drive, with a large torque transmission
Equipped with an integral slip ring and precision carbon brushes, it has a compact space design and high reliability, and is suitable for various complex mining projects

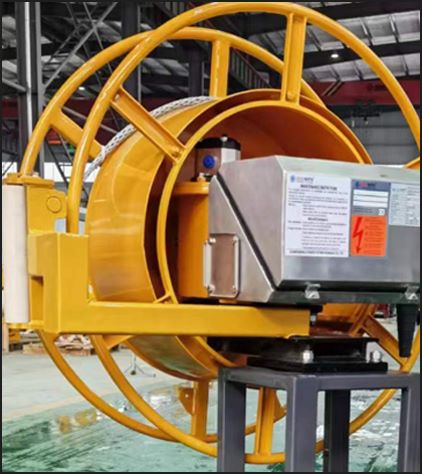

Hydraulic coupling reducer cable reel
Product performance and parameters:
Application scenarios	Tunnels, mining
Ambient temperature	-40/+60℃
Cable specifications	3X35+1X10,3X50+1X16
Reeling form	Horizontal coiling
Reeling length	100 meters, Customized Acceptable
Operating speed	50m/min （Adjustable)
Protection level	IP55
Product features and advantages:
The hydraulic coupling reducer cable reel is equipped with a 200NM hydraulic coupling reducer, with adjustable output torque and softer transmission characteristics. When the cable tension is greater than the motor output torque, the reducer can slip inside to better protect the cable
Equipped with integral slip rings and precision carbon brushes, compact space design, high reliability, widely used in tunnel construction machinery such as tunnel anchor trolleys and tunnel drilling trolleys

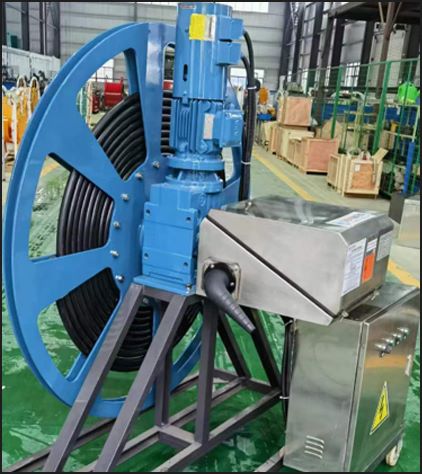

Variable frequency cable reel
Product performance and parameters:
Application scenarios	Ports, docks, railway freight yards
Ambient temperature	-40/+60℃
Motor	Frequency conversion motor
Cable specifications	4X10+4X4, Customized Acceptable
Reeling form	Horizontal/vertical winding
Reeling length	100 meters, Customized Acceptable
Operating speed	120m/min （Adjustable)
Protection level	IP55
Product features and advantages:
The variable frequency cable reel adopts a variable frequency control system, which can more accurately and effectively control the constant tension of the cable. It is suitable for equipment with a wide speed, long stroke, and fast running speed
This cable reel has anti-locking and anti-slip protection functions, and the protection level is above IP55

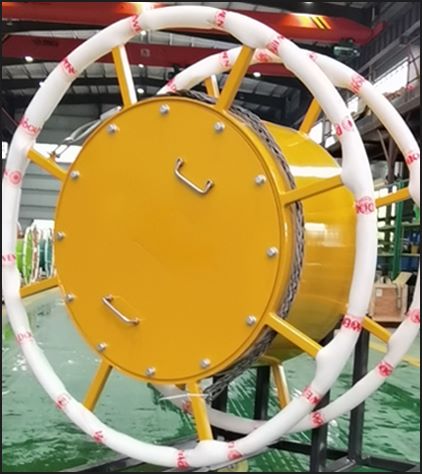

Mining cable reel
Product performance and parameters:
Application scenarios	Tunnel engineering, Mining
Ambient temperature	-40/+60℃
Cable specifications	3X35+3X6
Reeling form	Horizontal coiling
Reeling length	80 meters, Customized Acceptable
Operating speed	50m/min （Adjustable)
Protection level	IP56
Product features and advantages:
The cable reel dedicated to the mining and excavation industry uses a high-power motor with a greater output torque. The structural design is more compact, with a smaller footprint in the narrow space of mining work, increasing the convenience of operation
This mining cable reel is equipped with an integral slip ring + precision carbon brush, with high reliability, and is widely used in tunnel and mine construction machinery

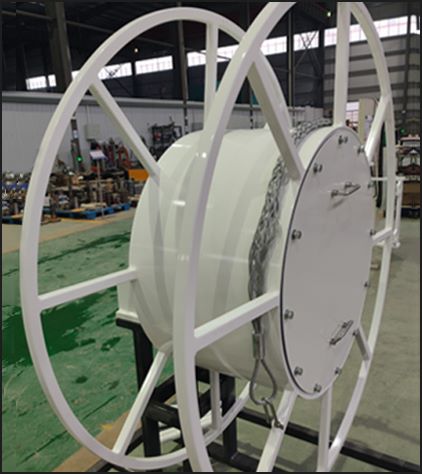

Hydraulic motor cable reel
Product performance and parameters:
Application scenarios	Tunnel
Ambient temperature	-40/+60℃
Cable specifications	3X95+3X50/3, Customized Acceptable
Reeling form	Horizontal coiling
Reeling length	100 meters, Customized Acceptable
Operating speed	50m/min (Adjustable)
Protection level	IP55
Product features and advantages:
The hydraulic motor cable reel has a larger motor output torque, comes with a cable guide, and operates reliably. It is widely used in tunnel construction equipment such as arch anchor trolleys and rock drilling trolleys
Integrated slip ring + precision carbon brush, adopts a slewing support structure, and has a compact space
