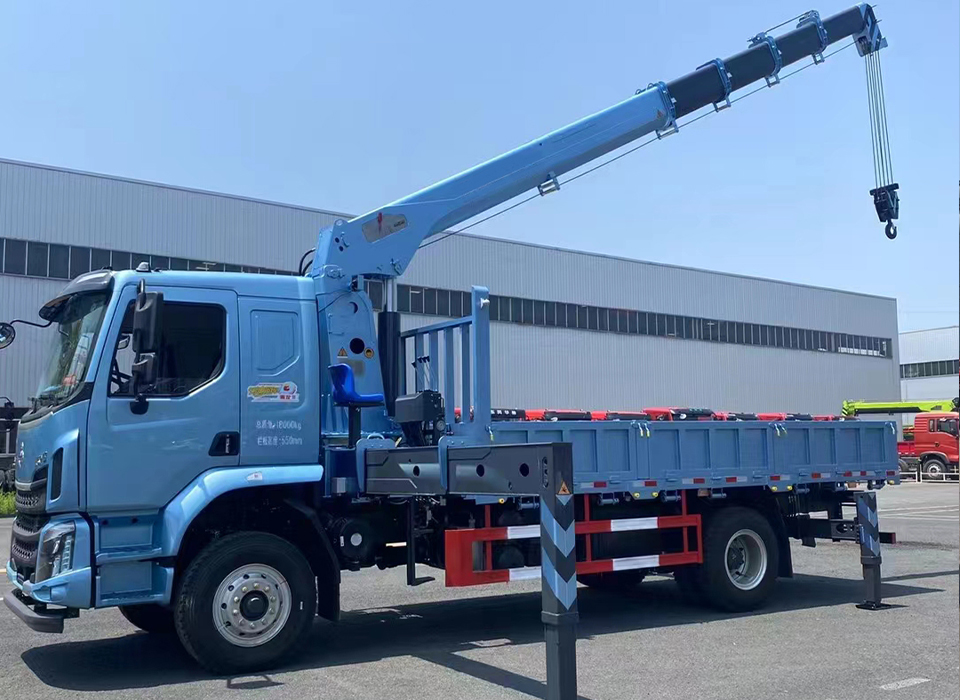

Truck mounted crane
Lifting characteristic parameter table (rated load)
| Arm length | |||||||
| Maximum lifting torque | 200 KN.m | Arm working range | 5.3m | 8.5m | 11.7m | 14.9m | 18.1m |
| Maximum lifting weight | 8T | 2.5 | 8000 | 6000 | |||
| Maximum arm length | 18.10m | 3.0 | 6660 | 5700 | 5200 | ||
| Minimum arm length | 5.3m | 3.5 | 5700 | 5100 | 4800 | 3500 | |
| Leg span | 2.35m-7.20m | 4.0 | 5000 | 4500 | 4250 | 3400 | |
| Slewing method | 360°全回转 | 4.5 | 4440 | 4000 | 3720 | 3100 | 2540 |
| Installation space | 0.998m | 5.0 | 4000 | 3550 | 3340 | 2800 | 2300 |
| System pressure | 23Mpa | 5.5 | 3200 | 2980 | 2580 | 2100 | |
| Recommended flow | 70L/min | 6.0 | 2900 | 2750 | 2340 | 1950 | |
| Standard crane deadweight | 4200kg | 6.5 | 2680 | 2520 | 2120 | 1800 | |
| Maximum lifting height | 19.88m | 7.0 | 2480 | 2300 | 1980 | 1680 | |
| Maximum operating range | 17.77m | 7.5 | 2300 | 2150 | 1820 | 1560 | |
| Crane height | 2.485m | 8.0 | 2120 | 1970 | 1680 | 1470 | |
| Slewing support track diameter | 0.71m | 8.5 | 1810 | 1580 | 1380 | ||
| 9.0 | 1720 | 1500 | 1300 | ||||
| 9.5 | 1610 | 1420 | 1250 | ||||
| 10.0 | 1520 | 1340 | 1200 | ||||
| 11 | 1330 | 1180 | 1060 | ||||
| 12 | 1020 | 980 | |||||
| 13 | 900 | 880 | |||||
| 14 | 800 | 820 | |||||
| 15 | 750 | ||||||
| 16 | 680 | ||||||
| 17 | 600 | ||||||
| 17.7 | 500 | ||||||

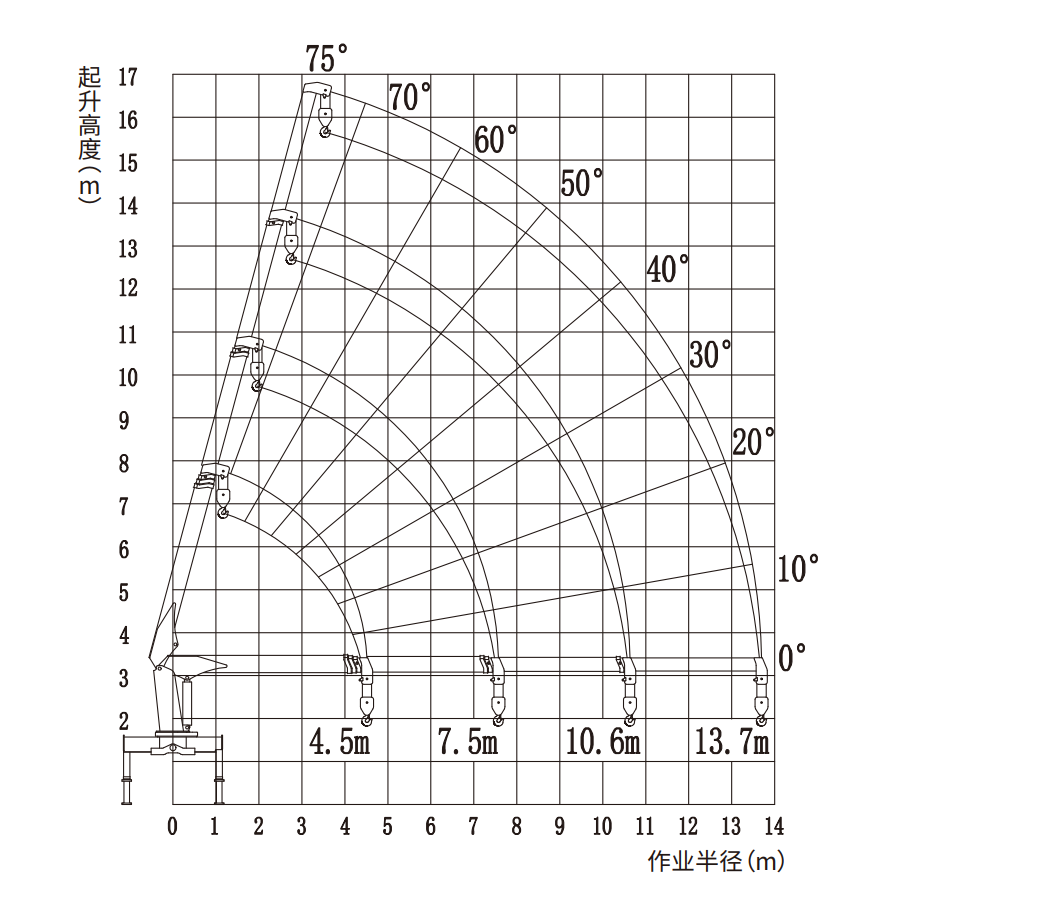

Lifting characteristic curve

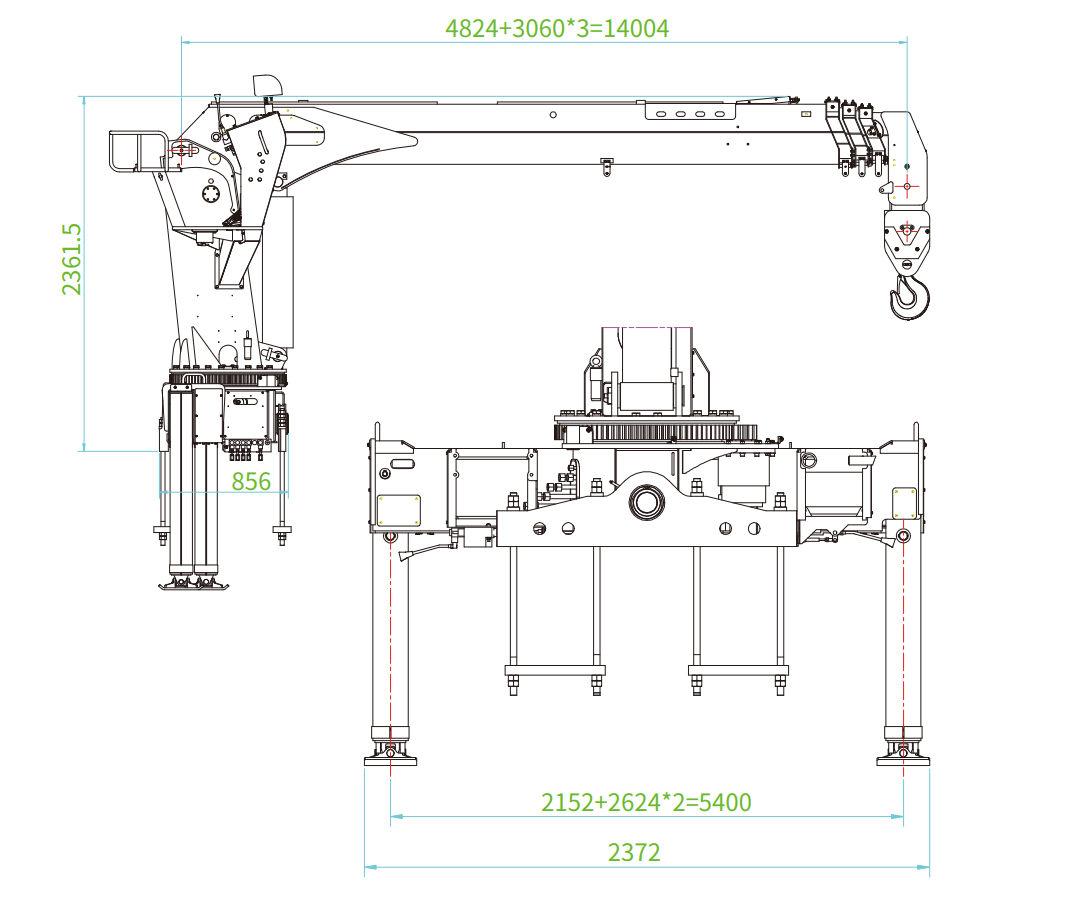

Cross-section of truck mounted crane
